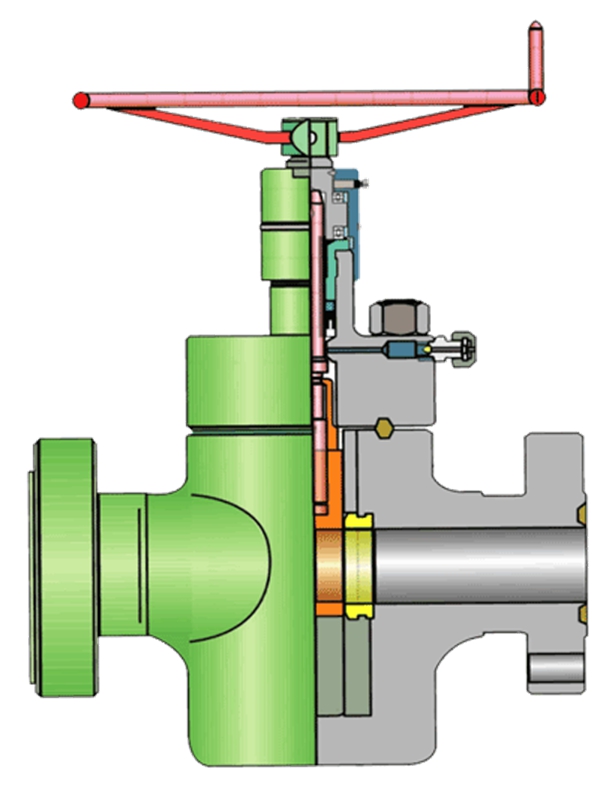

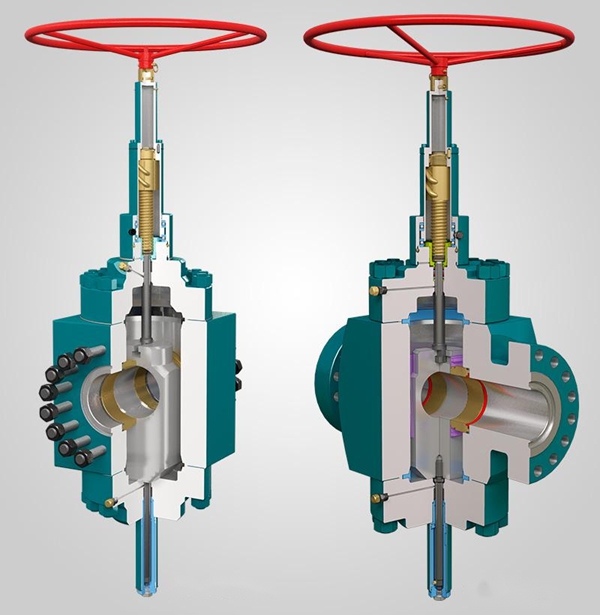

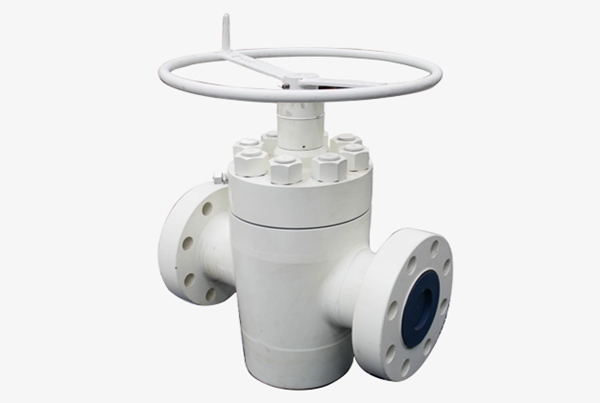

API 6A Gate Valve provided by AOLY Energy are field proven valves which strictly designed and manufactured according to API 6A and API Spec Q1 by forging AISI 4130/4140 low alloy or AISI 410 SS steel. The customized design and internal Inconel cladding are available as well for Extreme Sour application.

Technical Specification:

Bore Size: 2-1/16" - 7-1/16"

Working Pressure: 2,000PSI - 15,000PSI

Material Class: AA - HH

Working Temperature: L-U

PSL 1-4

PR 1-2
